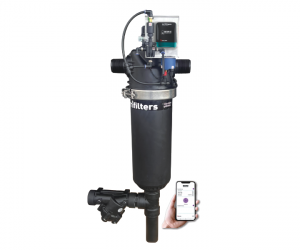

Series MAC
Hidraulic and Automatic HDPE Screen Filters
The MAC Series is the latest addition to the family of automatic mesh filters for the protection of irrigation systems. It is a small, lightweight, yet highly durable filter that is quick and easy to install and operate, and requires minimal maintenance. The MAC requires low water and energy consumption. It has a compact design and takes up little space.
Technical sheet
SYSTEM
Filtration produced by the retention of larger particles within the mesh gap. Large filtering surface area and minimal pressure drop.
FILTER ELEMENT
Stainless steel mesh injected directly into the polypropylene cartridge, with filtration rates between 100 and 200 microns, for our filters with a filtration surface area of 1,353 cm².
CLEANING
As with the hydraulic system, the filter cartridge is cleaned automatically by a set of suction nozzles that sweep over the entire surface of the dirty mesh, providing an uninterrupted supply of filtered water.
CONTROL UNITS
- Wash logs
- Outlet/inlet pressure control
- Wash frequency
- Alarms with event information
- current battery status
Mod TAL-GIL
DC/AC
Mod BACCARA DFC
DC
Mod BACCARA Octupus
DC
General features
Automatic hydraulic mesh filters made of high-density reinforced polyamide offer excellent durability at a reasonable price.
These filters, both the 2″ and 3″, can be activated via Bluetooth if the customer so requests. This option minimizes activation work, significantly reducing time and, in turn, costs.
Materials
- Body: Reinforced polyami
- Mesh: AISI 316 stainless steel
- mesh support: Injected polypropylene
- Scanner: AISI 304 stainless steel
- Suction nozzles: PVC
- Piston: High-density polyethylene sleeve
- Shaft: AISI 304 stainless steel
- Seals: 60° Shore synthetic nitrile rubber
Technical specifications.
